技术规格

Dangerous goodsDG0

UN numbern/a

Sound standardISO15744

Vibration value<2.5 m/s²

Model typeAngle

Weight1.6 kg

Weight3.5 lb

Sound pressure<70 dB(A)

Vibration standardISO28927-2

CS distance18 mm

Torque range min10 Nm

Torque range min7 ft lb

Torque range max55 Nm

Torque range max40 ft lb

Shut-off systemTransducer

KC certifiedYes

CCC certifiedNo

Motor voltage200 V

Motor voltage type3 a.c.

Height47 mm

Motor power1500 W

Length452 mm

EAC certifiedYes

KC IDR-REI-50A-ETVSTR61

WEEE5 - Small equipment <50cm

EU legislation2006/42/EC (MD), 2011/65/EU (RoHS), 2014/30/EU (EMC), 2015/863/EU (RoHS amendment)

Speed range max735 r/min

EC standardEN 61000-6-2:2019, EN 61000-6-4:2019, EN 62841-1:2015+AC:2015, EN 62841-2-2:2014+AC:2015, EN ISO 12100:2010

CQC certifiedNo

Output typeSquare, Male

Output size3/8"

Sound pressure pulse< 70 dB(A)

Vibration uncertainty pulse1.2 m/s²

Vibration value pulse8.6 m/s²

Sound power pulse0 dB(A)

UK legislationS.I. 2008/1597, S.I. 2012/3032, S.I. 2016/1091

UK standardBS EN 62841-1:2015, BS EN 62841-2-2:2014, BS EN IEC 61000-6-2:2019, BS EN IEC 61000-6-4:2019, BS EN ISO 12100:2010

Tool familySTR

Torque scatter 3s≤ 5 %

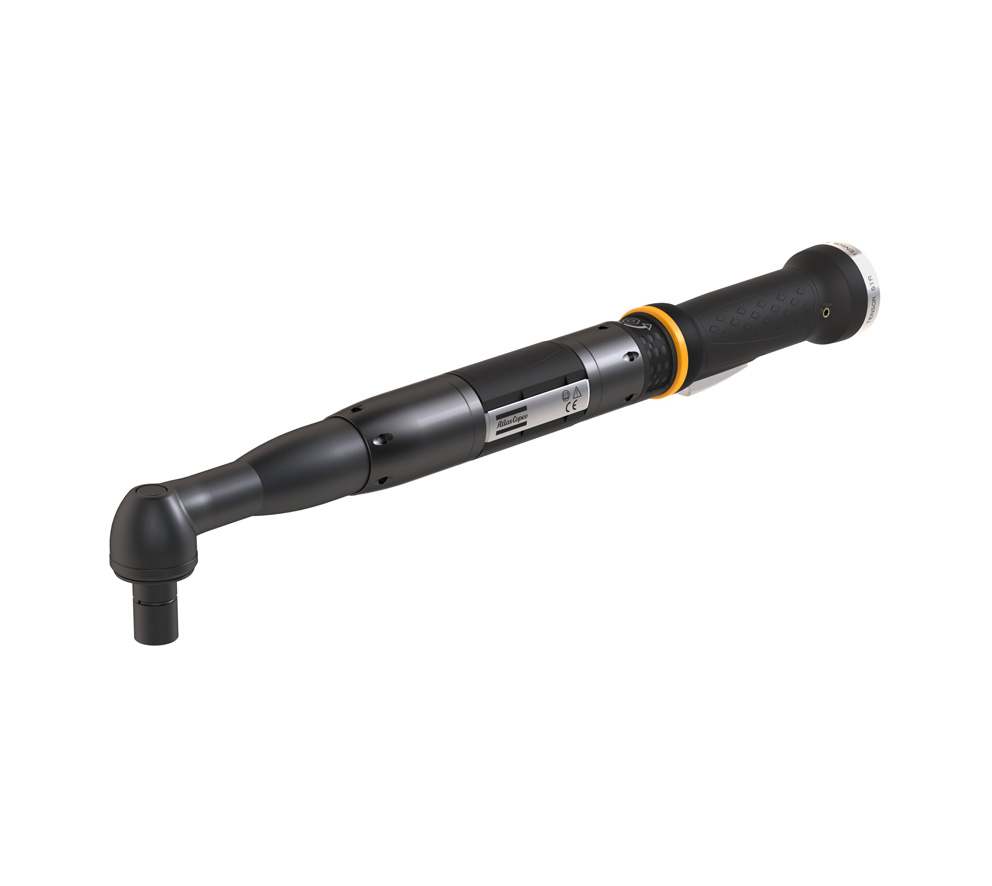

ETV STR61-50-10
