Technical specifications

Dangerous goodsDG0

UN numbern/a

Built in brakeNo

Shaft typeKeyed

ATEXYes

External parts materialHardened steel/Aluminium

Vane typeLubrication free

Rotation directionCounterclockwise

Weight0.75 kg

Weight1.65 lb

Stall torque2.8 Nm

Stall torque2.1 ft lb

Torque at max output1.4 Nm

Torque at max output1 ft lb

EU legislation2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)

Shaft loading codec

Max output0.52 hp

Max output0.39 kW

Free speed5350 r/min

Speed at max output2600 r/min

Air consumption at max output20.2 cfm

Air consumption at max output9.5 l/s

Min starting torque2.4 Nm

Min starting torque1.8 ft lb

Inlet hose size10 mm

Outlet hose size0.4 in

Outlet hose size10 mm

Inlet hose size0.4 in

ATEX Max Temperature85 °C

Max working pressure7 bar

Max ambient temperature40 ºC

Max working pressure101 psig

Ingress protection ratingIP66

EC standardEN 1127-1:2019, EN ISO 12100:2010, EN ISO 80079-36:2016, EN ISO 80079-37:2016

UK legislationS.I. 2008/1597 (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)

ATEX Technical file9836 4610 00

UK standardBS EN 1127-1:2019, BS EN ISO 12100:2010, BS EN ISO 80079-36:2016, BS EN ISO 80079-37:2016

Compliance with other EU Directives2014/34/EU (ATEX)

Compliance with other UK RegulationsS.I. 2016/1107

ATEX code dustEx II 2 D Ex h IIIC T85°C Db

ATEX code gasEx II 2 G Ex h IIC T6 Gb

SCIP5c0094d2-f59a-4fde-b7cd-1d4b6db13781

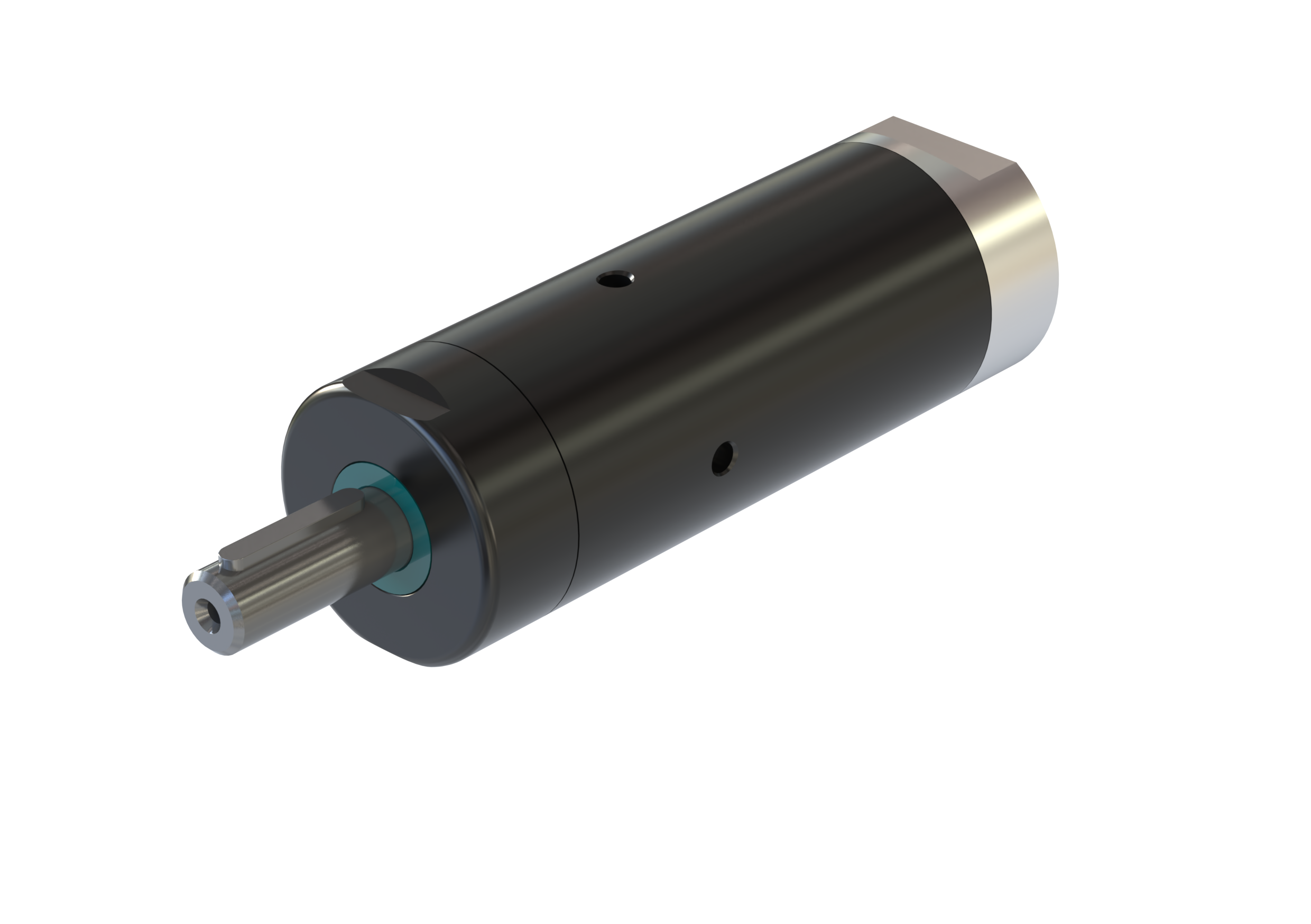

LZB33-L-AV060-11
