Technical specifications

Dangerous goodsDG0

UN numbern/a

EU legislation2006/42/EC

Weight0.6 kg

Weight1.3 lb

Sound standardISO15744

Sound uncertainty3 dB(A)

Vibration value<2.5 m/s²

Model typeAngle

Sound pressure73 dB(A)

Rec hose size3/8 in

Rec hose size10 mm

Air consumption at free speed15.9 cfm

Air consumption at free speed7.5 l/s

Motor typeVane

Air consumption at max output23.9 cfm

Air consumption at max output11.3 l/s

EC standardEN 792-9

Height over spindle79 mm

Length185 mm

Max free speed20000 r/min

Max output0.62 hp

Max output0.46 kW

Vibration standardISO28927-12

SCIPe25c2927-2983-4abe-b26b-feb3a3a3a3a6

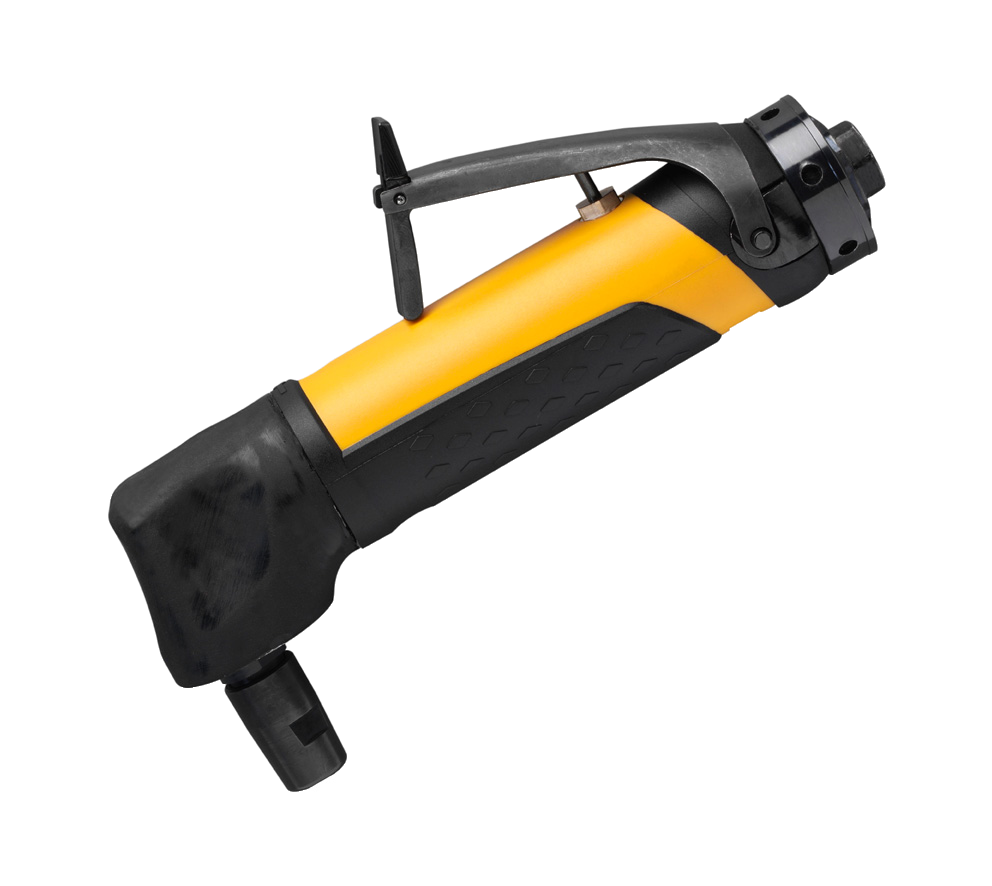

LSV18 S200-1

8423 0111 11
