技术规格

Dangerous goodsDG0

UN numbern/a

Built in brakeNo

Rotation directionClockwise

Shaft typeKeyed

ATEXYes

External parts materialHardened steel/Aluminium

Vane typeLubrication free

Weight0.75 kg

Weight1.65 lb

Speed at max output1170 r/min

EU legislation2006/42/EC (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)

Air consumption at max output17.2 cfm

Air consumption at max output8.1 l/s

Shaft loading codec

自由转速2400 r/min

Max output0.52 hp

Max output0.39 kW

Min starting torque6.1 Nm

Min starting torque4.5 ft lb

Stall torque6.4 Nm

Stall torque4.7 ft lb

Torque at max output3.2 Nm

Torque at max output2.4 ft lb

Inlet hose size10 mm

Outlet hose size0.4 in

Outlet hose size10 mm

Inlet hose size0.4 in

ATEX Max Temperature85 °C

Max working pressure7 bar

Max ambient temperature40 ºC

Max working pressure101 psig

Ingress protection ratingIP66

EC standardEN 1127-1:2019, EN ISO 12100:2010, EN ISO 80079-36:2016, EN ISO 80079-37:2016

UK legislationS.I. 2008/1597 (Annex I, clauses 1.1, 1.2 (excluding 1.2.4.3), 1.3, 1.4, 1.5, 1.6, 1.7)

ATEX Technical file9836 4610 00

UK standardBS EN 1127-1:2019, BS EN ISO 12100:2010, BS EN ISO 80079-36:2016, BS EN ISO 80079-37:2016

Compliance with other EU Directives2014/34/EU (ATEX)

Compliance with other UK RegulationsS.I. 2016/1107

ATEX code dustEx II 2 D Ex h IIIC T85°C Db

ATEX code gasEx II 2 G Ex h IIC T6 Gb

SCIP5c0094d2-f59a-4fde-b7cd-1d4b6db13781

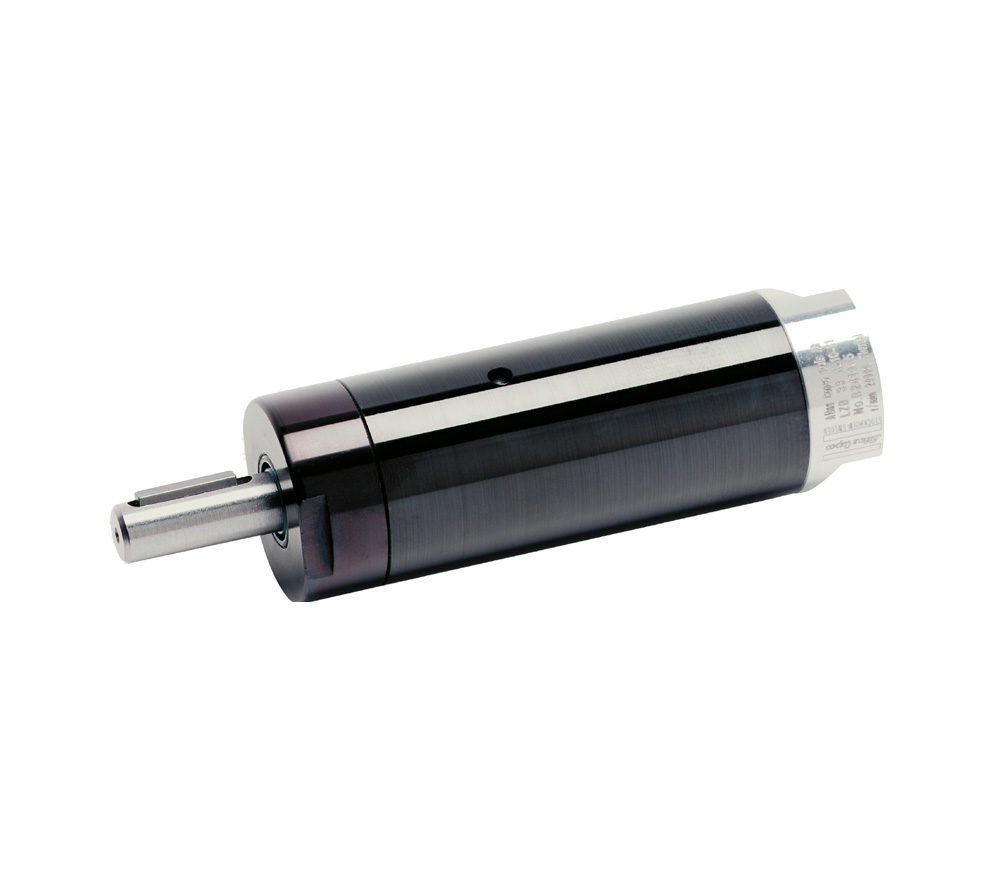

LZB33-L-A026-11
